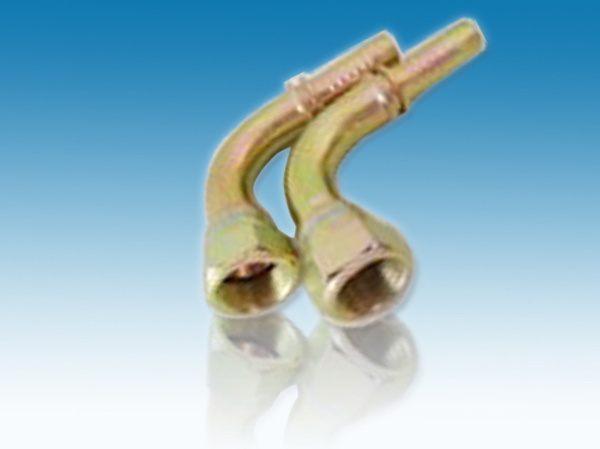

液壓芯子26791系列
發布日期： 2016-04-12
| 品牌： | NJ |
| 型號： | 26791 |
| 材質： | 碳鋼 |
| 規格： | 90度彎頭芯子 |
| 加工定制 | 是 |
| 適用范圍： | 機械設備 |
| 螺紋類型 | 美制螺紋 |
| 鏈接方式 | 螺紋，尾部扣壓 |

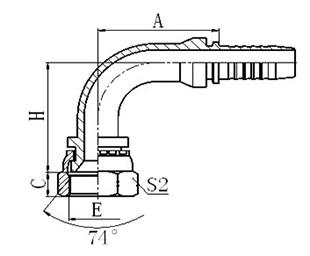

| 26791 26791W 90°美制JIC內螺紋74°內錐面 90° JIC FEMALE 74° CONE SEAT |
| 代 號 | 螺 紋 E | 膠 管 HOSE BORE | 尺 寸 DIMENSIONS | 選中 | ||||
| PART NO. | THREAD E | 公稱內徑 DN | 標號 DASH | A | C | H | S2 | |
| 26791-04-03 | 7/16"X20 | 5 | 3 | 26.5 | 9 | 30.5 | 15 | |
| 26791-04-04 | 7/16"X20 | 6 | 4 | 30 | 9 | 33.5 | 15 | |
| 26791-05-04 | 1/2"X20 | 6 | 4 | 30 | 9.5 | 34 | 17 | |
| 26791-05-05 | 1/2"X20 | 8 | 5 | 33 | 9.5 | 37 | 17 | |
| 26791-05-06 | 1/2"X20 | 10 | 6 | 35.3 | 9.5 | 39.3 | 17 | |
| 26791-06-04 | 9/16"X18 | 6 | 4 | 30 | 10.5 | 34 | 19 | |
| 26791-06-05 | 9/16"X18 | 8 | 5 | 33 | 10.5 | 37 | 19 | |
| 26791-06-06 | 9/16"X18 | 10 | 6 | 35.3 | 10.5 | 39.3 | 19 | |
| 26791-06-08 | 9/16"X18 | 12 | 8 | 41 | 10.5 | 45.5 | 19 | |
| 26791-08-06 | 3/4"X16 | 10 | 6 | 35.3 | 11 | 41.3 | 24 | |
| 26791-08-08 | 3/4"X16 | 12 | 8 | 41 | 11 | 47 | 24 | |
| 26791-08-10 | 3/4"X16 | 16 | 10 | 56.5 | 11 | 51.5 | 24 | |
| 26791-10-08 | 7/8"X14 | 12 | 8 | 41 | 13 | 48 | 27 | |
| 26791-10-10 | 7/8"X14 | 16 | 10 | 56.5 | 13 | 52.5 | 27 | |
| 26791-10-12 | 7/8"X14 | 20 | 12 | 67 | 13 | 64 | 27 | |
| 26791-12-08 | 1.1/16"X12 | 12 | 8 | 41 | 15 | 49.5 | 32 | |
| 26791-12-10 | 1.1/16"X12 | 16 | 10 | 56.5 | 15 | 54 | 32 | |
| 26791-12-12 | 1.1/16"X12 | 20 | 12 | 65.5 | 15 | 63.5 | 32 | |
| 26791-12-16 | 1.1/16"X12 | 25 | 16 | 76.7 | 15 | 70 | 32 | |
| 26791-14-12 | 1.3/16"X12 | 20 | 12 | 65.5 | 15 | 63.5 | 36 | |
