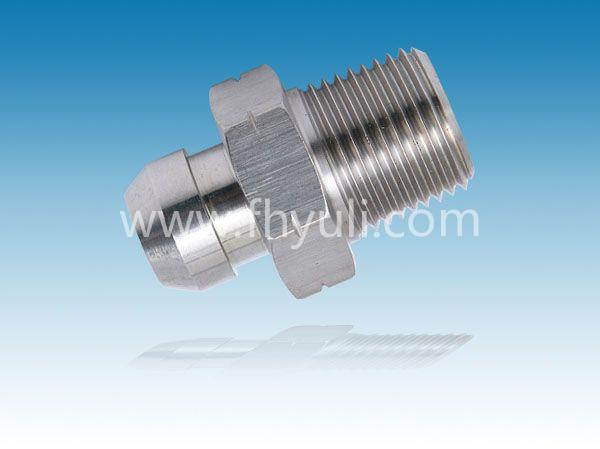

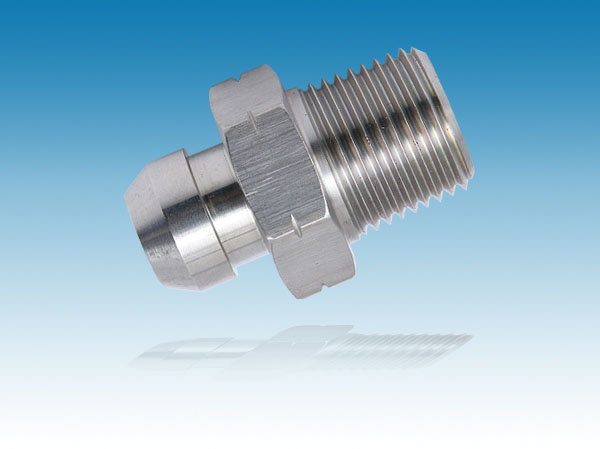

【產品名稱】 不銹鋼過渡接頭 直管SS1404系列
【所屬分類】 不銹鋼過渡接頭 【產品型號】 SS1404 【產品品牌】 寧吉羽立 NJ 【生產廠家】 寧波市寧吉羽立流體設備有限公司
產品詳情
| 品牌： | NJ |
| 型號： | SS1404 |
| 材質： | 不銹鋼 |
| 規格： | 直管 |
| 加工定制 | 是 |
| 適用范圍： | 機械設備 |
| 螺紋類型： | 錐螺紋 |
| 鏈接方式 | 螺紋 |
| Product ID | Description | A1 NPTF | A2 NPSM | A1 DRILL | A2 DRILL | L1 LGTH | L LGTH | C HEX | C1 HEX |
| 1404-02-02 | 02MP-02FPS Straight | 1/8-27 | 1/8-27 | 0.188 | .11/.19 | 0.94 | 1.08 | 0.562 | 0.562 |
| 1404-02-04 | 02MP-04FPS Straight | 1/8-27 | 1/4-18 | 0.188 | 0.220 | 1.05 | 1.24 | 0.688 | 0.688 |
| 1404-04-02 | 04MP-02FPS Straight | 1/4-18 | 1/8-27 | 0.281 | 0.150 | 1.18 | 1.32 | 0.688 | 0.562 |
| 1404-04-04 | 04MP-04FPS Straight | 1/4-18 | 1/4-18 | 0.281 | 0.220 | 1.23 | 1.42 | 0.688 | 0.688 |
| 1404-04-06 | 04MP-06FPS Straight | 1/4-18 | 3/8-18 | 0.281 | 0.281 | 1.31 | 1.52 | 0.812 | 0.875 |
| 1404-04-08 | 04MP-08FPS Straight | 1/4-18 | 1/2-14 | 0.281 | 0.460 | 1.42 | 1.70 | 1.000 | 1.000 |
| 1404-06-04 | 06MP-04FPS Straight | 3/8-18 | 1/4-18 | 0.406 | 0.220 | 1.30 | 1.49 | 0.750 | 0.688 |
| 1404-06-06 | 06MP-06FPS Straight | 3/8-18 | 3/8-18 | 0.406 | 0.340 | 1.30 | 1.52 | 0.875 | 0.875 |
| 1404-06-08 | 06MP-08FPS Straight | 3/8-18 | 1/2-14 | 0.406 | 0.460 | 1.42 | 1.70 | 1.000 | 1.000 |
| 1404-08-04 | 08MP-04FPS Straight | 1/2-14 | 1/4-18 | 0.531 | 0.220 | 1.52 | 1.71 | 0.875 | 0.688 |
| 1404-08-06 | 08MP-06FPS Straight | 1/2-14 | 3/8-18 | 0.531 | 0.340 | 1.56 | 1.77 | 0.875 | 0.875 |
| 1404-08-08 | 08MP-08FPS Straight | 1/2-14 | 1/2-14 | 0.531 | 0.460 | 1.61 | 1.89 | 1.000 | 1.000 |
| 1404-08-12 | 08MP-12FPS Straight | 1/2-14 | 3/4-14 | 0.531 | 0.635 | 1.74 | 2.09 | 1.250 | 1.250 |
| 1404-12-06 | 12MP-06FPS Straight | 3/4-14 | 3/8-18 | 0.719 | 0.340 | 1.56 | 1.77 | 1.125 | 0.875 |
| 1404-12-08 | 12MP-08FPS Straight | 3/4-14 | 1/2-14 | 0.719 | 0.460 | 1.65 | 1.93 | 1.125 | 1.000 |
| 1404-12-12 | 12MP-12FPS Straight | 3/4-14 | 3/4-14 | 0.63 | 0.63 | 1.75 | 2.08 | 1.250 | 1.250 |
| 1404-12-16 | 12MP-16FPS Straight | 3/4-14 | 1-11 1/2 | 0.719 | 0.831 | 1.81 | 2.16 | 1.500 | 1.500 |
| 1404-12-20 | 12MP-20FPS Straight | 3/4-14 | 1 1/4-1 1/2 | 0.719 | 1.085 | 1.86 | 2.28 | 1.875 | 1.875 |
| 1404-16-06 | 16MP-06FPS Straight | 1-11 1/2 | 3/8-18 | 0.938 | 0.340 | 1.81 | 2.02 | 1.375 | 0.875 |
| 1404-16-08 | 16MP-08FPS Straight | 1-11 1/2 | 1/2-14 | 0.938 | 0.460 | 1.88 | 2.16 | 1.375 | 1.000 |
| 1404-16-12 | 16MP-12FPS Straight | 1-11 1/2 | 3/4-14 | 0.938 | 0.635 | 1.94 | 2.29 | 1.500 | 1.250 |
| 1404-16-16 | 16MP-16FPS Straight | 1-11 1/2 | 1-11 1/2 | 0.938 | 0.831 | 2.00 | 2.35 | 1.500 | 1.500 |
| 1404-16-20 | 16MP-20FPS Straight | 1-11 1/2 | 1 1/4-11 1/2 | 0.938 | 1.087 | 2.05 | 2.47 | 1.875 | 1.875 |
| 1404-16-24 | 16MP-24FPS Straight | 1-11-1/2 | 1-1/2-11-1/2 | 0.938 | 1.317 | 2.21 | 2.63 | 2.125 | 2.125 |
| 1404-20-16 | 20MP-16FPS Straight | 1 1/4-11 1/2 | 1-11 1/2 | 1.250 | 0.831 | 2.05 | 2.40 | 1.875 | 1.500 |
| 1404-20-20 | 20MP-20FPS Straight | 1 1/4-11 1/2 | 1 1/4-11 1/2 | 1.250 | 1.087 | 2.10 | 2.52 | 1.875 | 1.875 |
| 1404-20-24 | 20MP-24FPS Straight | 1 1/4-11 1/2 | 1 1/2-11 1/2 | 1.250 | 1.317 | 2.09 | 2.51 | 2.125 | 2.125 |
| 1404-24-20 | 24MP-20FPS Straight | 1 1/2-11 1/2 | 1 1/4-11 1/2 | 1.500 | 1.087 | 2.12 | 2.54 | 2.125 | 1.875 |
| 1404-24-24 | 24MP-24FPS Straight | 1 1/2-11 1/2 | 1 1/2-11 1/2 | 1.500 | 1.317 | 2.27 | 2.69 | 2.125 | 2.125 |
| 1404-32-32 | 32MP-32FPS Straight | 2-11 1/2 | 2-11 1/2 | 1.938 | 1.72 | 2.40 | 2.82 | 2.625 | 2.625 |
